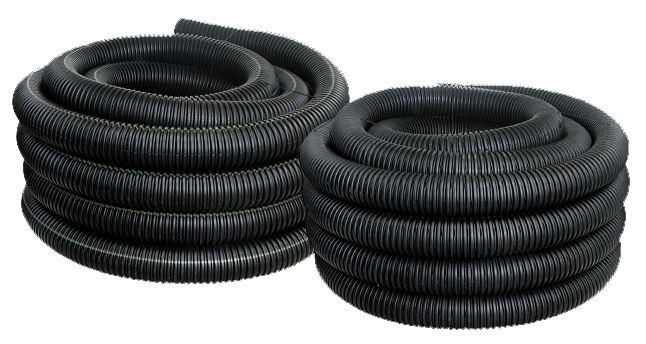

Single Wall Pipe

The Single Wall corrugated HDPE pipe is ideal for drainage projects where flexibility, light weight and low cost are important. Our customers find that this corrugated pipe is an economical, easy–to–install solution whether the project is agricultural, retail or highway related. Applications include downspouts run off, foundation and window well drains, and roadway culverts.

Contact a Pro for Pricing

Contact a Pro for Pricing

Product Variations & Specifications Product Specs

Product Details Product Details

Documentation Documentation

General Applications

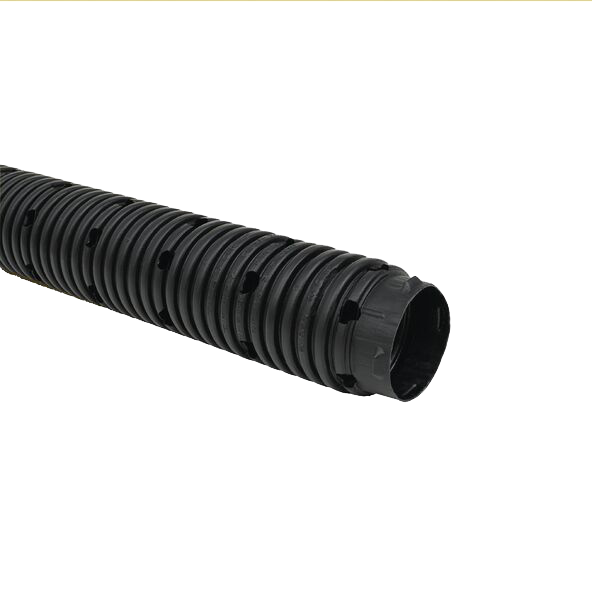

Heavy Duty Single Wall HDPE Pipe
Diameters Available	3"-15" (76-380mm)
Lengths Available	See HDPE Products Catalog
Joint Performance	Soil Tight

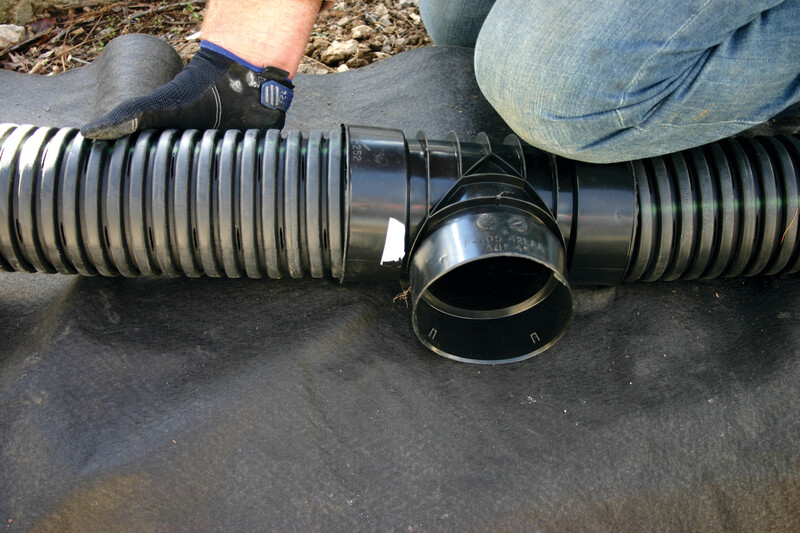

Joining Systems	Cleated bell, split, internal and snap couplers
Specifications	ASTM F667
Applications Used

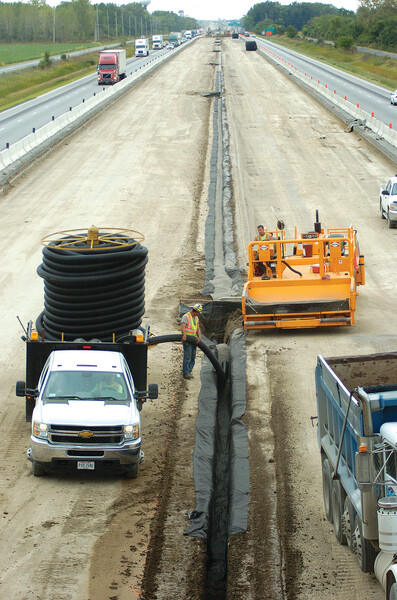

Highway Specifications

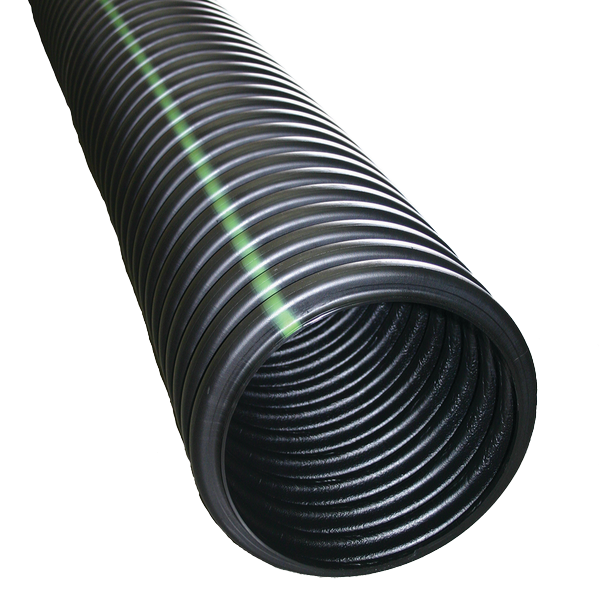

Highway Single Wall HDPE Pipe
Diameters Available	3"-15" (101-380mm)
Lengths Available	See HDPE Products Catalog
Joint Performance	Soil Tight
Joining Systems	Cleated bell, split, internal and snap couplers
Specifications	AASHTO M252 - 3-10" (75-250 mm) AASHTO M294 - 12-15" (300-375 mm)

Special Applications

Single Wall Muck Pipe
Diameters Available	4"-6" (100-150mm)
Lengths Available	See HDPE Products Catalog
Joint Performance	Soil Tight
Joining Systems	Cleated bell, split, internal and snap couplers
Specifications	ASTM F667

Single Wall Channel Flow Pipe
Diameters Available	4" (100mm)
Lengths Available	See HDPE Products Catalog
Joint Performance	Soil Tight
Joining Systems	Cleated bell, split, internal and snap couplers
Specifications	ASTM F667

Single Wall Co-Ex Pipe
Diameters Available	4"-8" (100-200mm)
Lengths Available	See HDPE Products Catalog
Joint Performance	Soil Tight
Joining Systems	Cleated bell, split, internal and snap couplers
Specifications	ASTM F667

Product Details

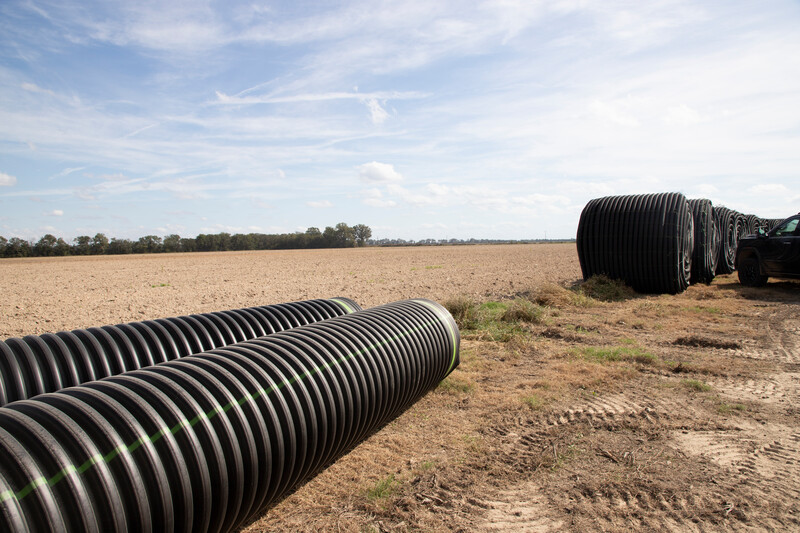

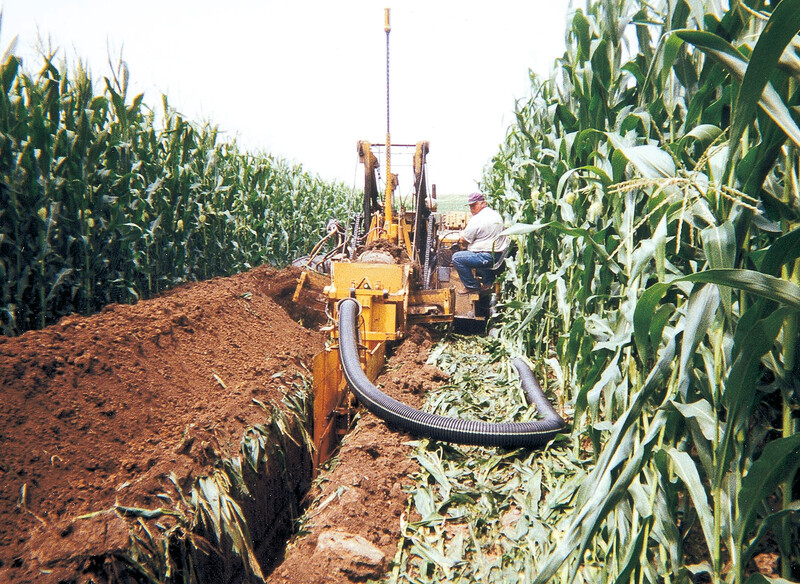

Singlewall Installed in Standing Corn Field

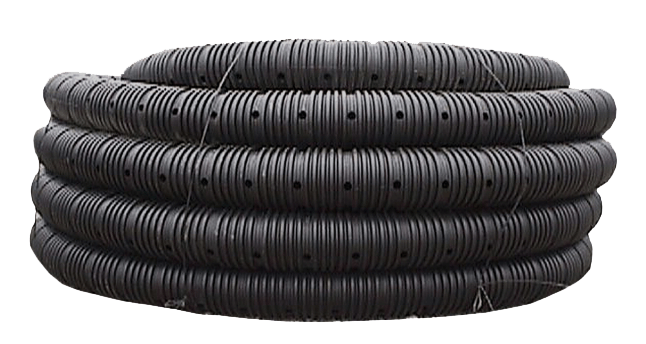

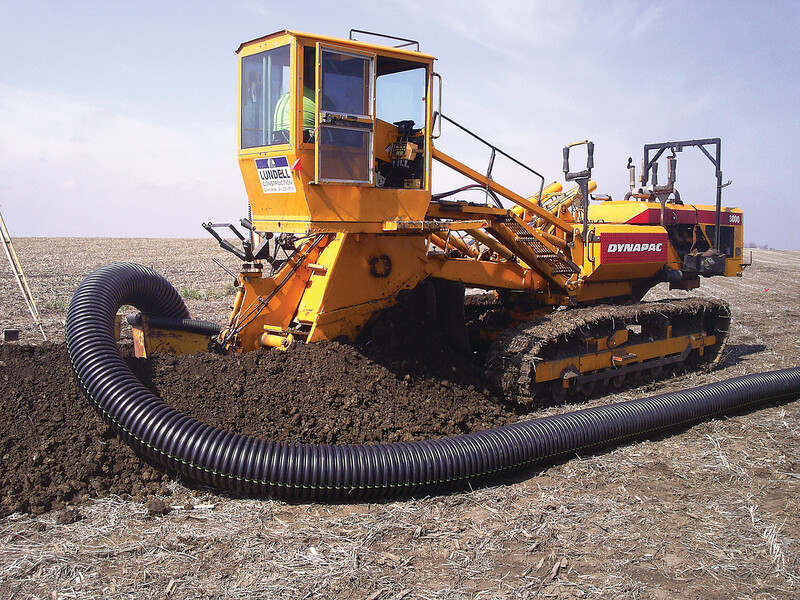

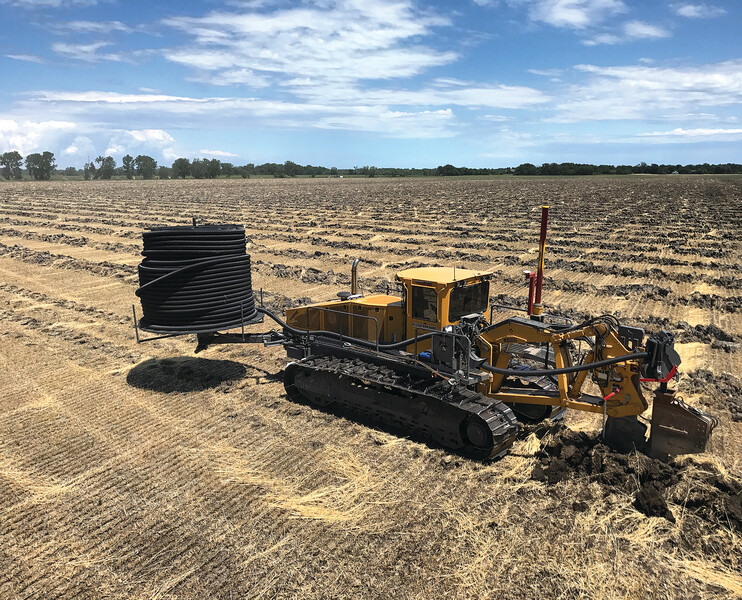

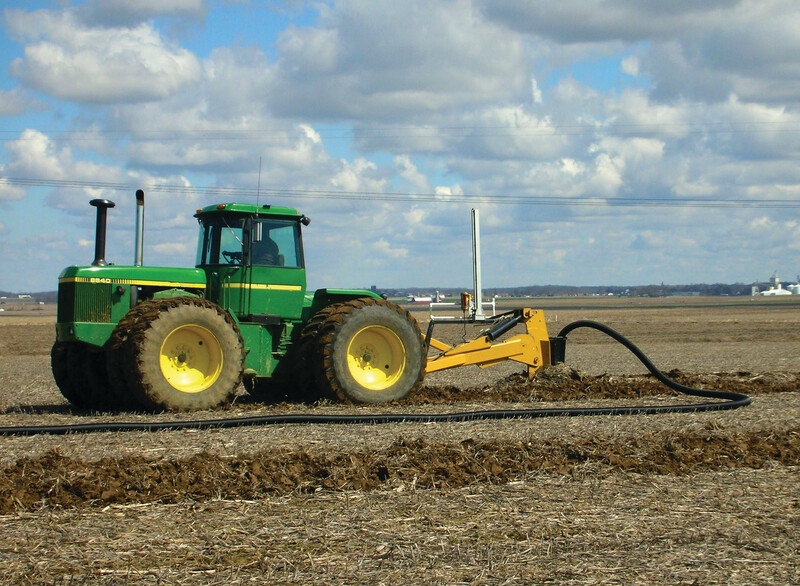

Singlewall Agriculture Installation Perforated Pipe

Overview

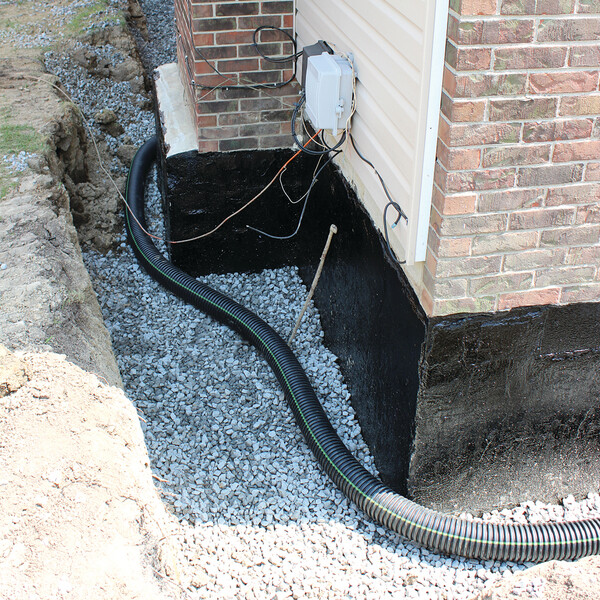

Single Wall corrugated HDPE pipe keeps homes, farms, golf courses, parks and playing fields free from excess underground moisture and flooding. This product has many different residential applications including: downspout roof drainage, landscaping subdrainage, pavement underdrains and foundation drains. Some additional applications include highway edge drains, culverts and other construction uses where durability and large scale savings are a priority.

Features and Benefits

Available in a variety of lengths and diameters to service all your needs

Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent
Lightweight product for best-installed cost and maximizing delivery and installation efficiencies
Readily available in convenient locations to service local projects
Annular corrugated single wall
3"- 15" (75-381 mm)

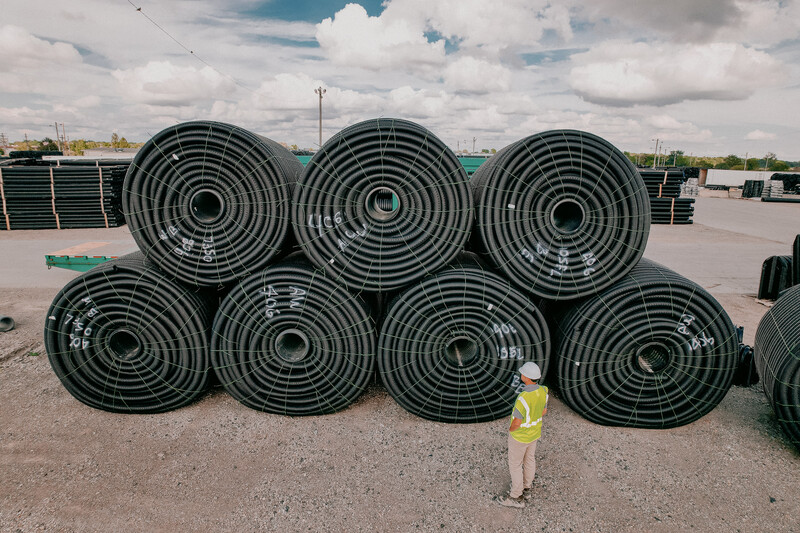

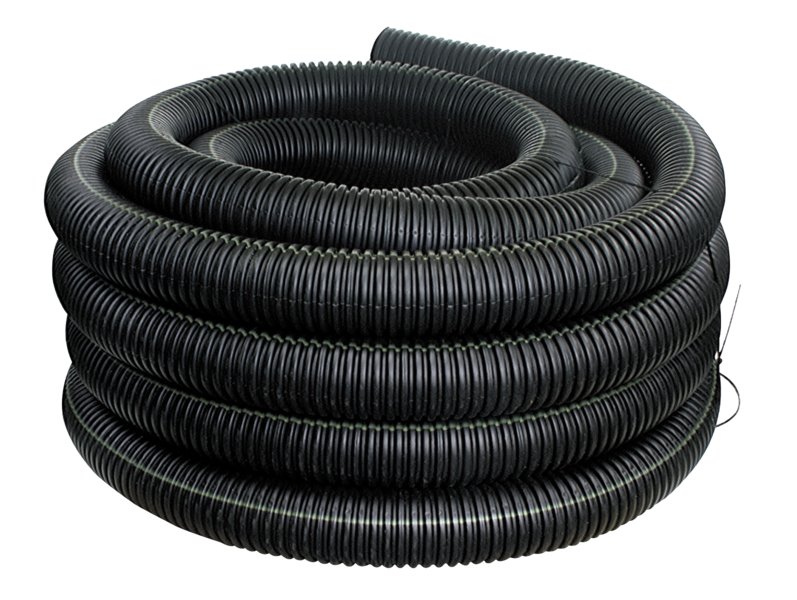

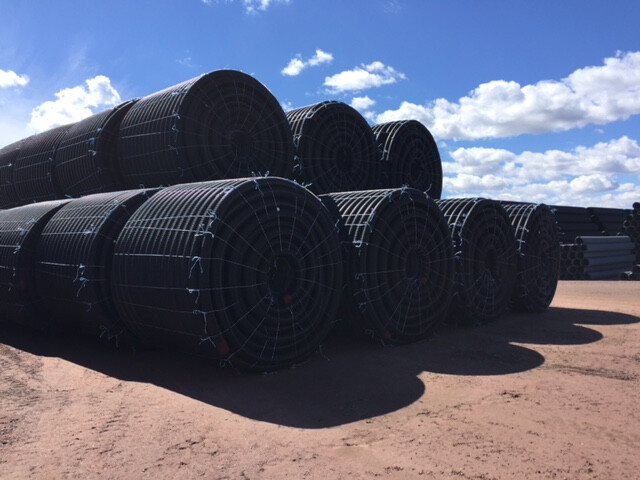

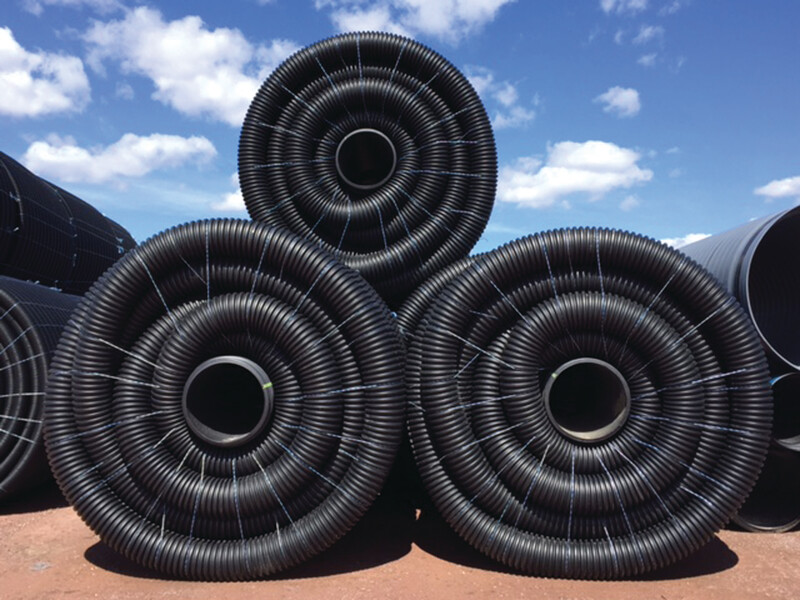

100'-5,500' (30-1676 m) coils, depending on pipe diameter. 10'-20' (3-6 m) sticks
Internal, external snap or split band couplers
ASTM F667 and AASHTO M252, Type C or CP - 3-10" (75-250 mm)
AASHTO M294, Type C or CP - 12-15" (300-375 mm)

Build America, Buy America (BABA) Act

ADS Single Wall Highway pipe, manufactured in accordance with AASHTO M252 or AASHTO M294, complies with the requirements in the Build America, Buy America (BABA) Act.
